canal在docker下的搭建(配合canal-admin)

本文最后更新于：10 个月前

MySQL配置

对于自建 MySQL , 需要先开启 Binlog 写入功能，配置 binlog-format 为 ROW 模式，my.cnf 中配置如下
```
[mysqld]
log-bin=mysql-bin # 开启 binlog
binlog-format=ROW # 选择 ROW 模式
server_id=1 # 配置 MySQL replaction 需要定义，不要和 canal 的 slaveId 重复
```
- 注意：针对阿里云 RDS for MySQL , 默认打开了 binlog , 并且账号默认具有 binlog dump 权限 , 不需要任何权限或者 binlog 设置,可以直接跳过这一步

授权 canal 链接 MySQL 账号具有作为 MySQL slave 的权限, 如果已有账户可直接 grant

CREATE USER canal IDENTIFIED BY 'canal';
GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'canal'@'%';
-- GRANT ALL PRIVILEGES ON *.* TO 'canal'@'%' ;
FLUSH PRIVILEGES;

PS：我本地使用的MySQL 8.0，实测不用修改此配置也可正常使用

canal容器的创建与启动

拉取所需要的镜像

# canal-admin
🍓 ➜  ~ docker pull canal/canal-admin
# canal-server
🍓 ➜  ~ docker pull canal/canal-server

下载canal-admin的运行脚本

wget https://raw.githubusercontent.com/alibaba/canal/master/docker/run_admin.sh

启动并运行canal-admin

# 以8089端口启动canal-admin
sh run_admin.sh -e server.port=8089 \
         -e canal.adminUser=admin \
         -e canal.adminPasswd=admin

# 指定外部的mysql作为admin的库
sh run_admin.sh \
    -e server.port=8089 \
    -e spring.datasource.address=host.docker.internal \
    -e spring.datasource.database=xxx \
    -e spring.datasource.username=root \
    -e spring.datasource.password=xxx

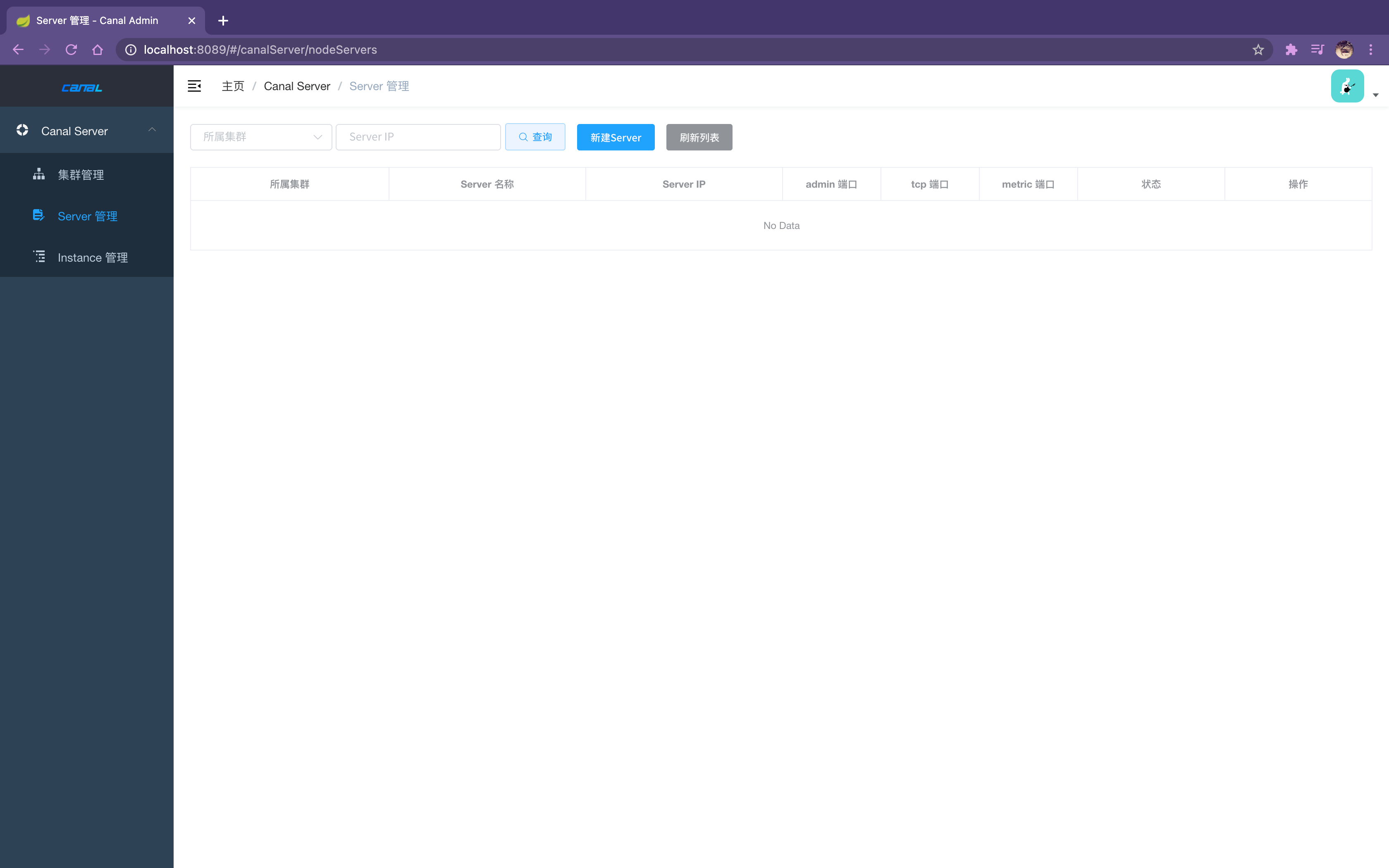

打开浏览器，访问http://localhost:8089，默认账号密码为admin/123456，首页如图所示

下载canal-server的运行脚本

wget https://raw.githubusercontent.com/alibaba/canal/master/docker/run.sh

admin管理模式启动并运行canal-server，本案例以单机模式为例，集群模式需手动创建一个集群，并且提供zookeeper地址，然后启动参数加上集群名称即可，配置与单机模式一样，只不过一个集群共用一个server配置

# 以单机模式启动
run.sh -e canal.admin.manager=127.0.0.1:8089 \
         -e canal.admin.port=11110 \
         -e canal.admin.user=admin \
         -e canal.admin.passwd=4ACFE3202A5FF5CF467898FC58AAB1D615029441

# 集群模式启动，自动加入test集群
# 如果使用集群模式，需要在canal-admin管理页面创建集群，同一个集群使用相同的配置文件
run.sh -e canal.admin.manager=127.0.0.1:8089 \
         -e canal.admin.port=11110 \
         -e canal.admin.user=admin \
         -e canal.admin.passwd=4ACFE3202A5FF5CF467898FC58AAB1D615029441
         -e canal.admin.register.cluster=test

PS：在docker容器中，若非主机网络模式，127.0.0.1并非为主机的地址，Mac版可使用host.docker.internal访问到主机，Linux暂不支持，需要手动在容器中查询到主机的ip，替换掉上面的127.0.0.1

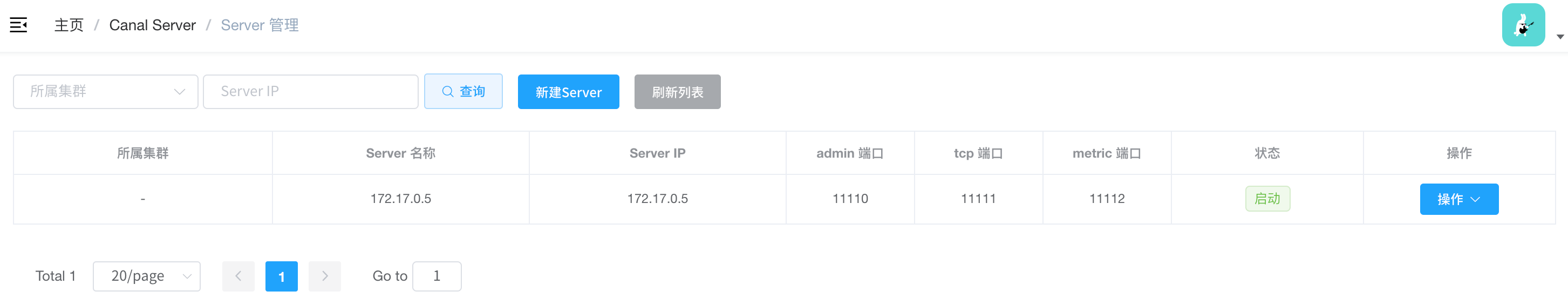

启动成功后，刷新admin页面的server列表，会出现刚刚启动的canal-server：

至此，canal的创建与启动已经完成，在管理页面进行配置操作即可

canal核心配置介绍

canal的配置分为server配置和instance配置，一个server可包含多个instance，部分配置

server配置

# 服务模式，支持tcp, kafka, rocketMQ, rabbitMQ
canal.serverMode = kafka

### kafka配置
# 该值为false时，发送的消息为二进制压缩格式，需要客户端使用protobuf工具解析，为true时，发送json文本
canal.mq.flatMessage = true
# kafka服务器地址
kafka.bootstrap.servers = host.docker.internal:9092

instance配置

# 监听的数据库地址
canal.instance.master.address=host.docker.internal:3306
# 数据库的用户名
canal.instance.dbUsername=root
# 数据库密码
canal.instance.dbPassword=123456
# 表名过滤，正则表达式，(${库名}.${表名})
canal.instance.filter.regex=.+\\..+

# kafka topic名称，所有的消息都将放入此topic
# canal.mq.topic=example
# 根据库名可表名动态topic
canal.mq.dynamicTopic=.+\\..+
# 发送分区
canal.mq.partition=0
# 分区数量
#canal.mq.partitionsNum=3
# 根据库名和表名计算出发送分区(Hash)，可控制同一个库/表有序
#canal.mq.partitionHash=test.table:id^name,.*\\..*

### 动态topic和partition的详细说明
# canal.mq.dynamicTopic 表达式说明
# canal 1.1.3版本之后, 支持配置格式：schema 或 schema.table，多个配置之间使用逗号或分号分隔

# 例子1：test\\.test 指定匹配的单表，发送到以test_test为名字的topic上
# 例子2：.*\\..* 匹配所有表，则每个表都会发送到各自表名的topic上
# 例子3：test 指定匹配对应的库，一个库的所有表都会发送到库名的topic上
# 例子4：test\\..* 指定匹配的表达式，针对匹配的表会发送到各自表名的topic上
# 例子5：test,test1\\.test1，指定多个表达式，会将test库的表都发送到test的topic上，test1\\.test1的表发送到对应的test1_test1 topic上，其余的表发送到默认的canal.mq.topic值
# 为满足更大的灵活性，允许对匹配条件的规则指定发送的topic名字，配置格式：topicName:schema 或 topicName:schema.table

# 例子1: test:test\\.test 指定匹配的单表，发送到以test为名字的topic上
# 例子2: test:.*\\..* 匹配所有表，因为有指定topic，则每个表都会发送到test的topic下
# 例子3: test:test 指定匹配对应的库，一个库的所有表都会发送到test的topic下
# 例子4：testA:test\\..* 指定匹配的表达式，针对匹配的表会发送到testA的topic下
# 例子5：test0:test,test1:test1\\.test1，指定多个表达式，会将test库的表都发送到test0的topic下，test1\\.test1的表发送到对应的test1的topic下，其余的表发送到默认的canal.mq.topic值
# 大家可以结合自己的业务需求，设置匹配规则，建议MQ开启自动创建topic的能力

# canal.mq.partitionHash 表达式说明
# canal 1.1.3版本之后, 支持配置格式：schema.table:pk1^pk2，多个配置之间使用逗号分隔

# 例子1：test\\.test:pk1^pk2 指定匹配的单表，对应的hash字段为pk1 + pk2
# 例子2：.*\\..*:id 正则匹配，指定所有正则匹配的表对应的hash字段为id
# 例子3：.*\\..*:$pk$ 正则匹配，指定所有正则匹配的表对应的hash字段为表主键(自动查找)
# 例子4: 匹配规则啥都不写，则默认发到0这个partition上
# 例子5：.*\\..* ，不指定pk信息的正则匹配，将所有正则匹配的表,对应的hash字段为表名
# 按表hash: 一张表的所有数据可以发到同一个分区，不同表之间会做散列 (会有热点表分区过大问题)
# 例子6: test\\.test:id,.\\..* , 针对test的表按照id散列,其余的表按照table散列
# 注意：大家可以结合自己的业务需求，设置匹配规则，多条匹配规则之间是按照顺序进行匹配(命中一条规则就返回)

其余配置可参考官网wiki文档：alibaba/canal

测试监听

使用kafka客户端测试，由于我使用的动态topic，所以topic名称为：{库名}_{表名}

🍓 ➜  kafka_2.12-2.2.2 ./bin/kafka-console-consumer.sh --bootstrap-server 127.0.0.1:9092 --topic test_article

手动修改一条该表的数据，即可收到canal发送的数据库变更消息：

总结：

总体的搭建过程还是比较简单的，admin模块为我们提供了一个可视化的管理界面，简单易用，单独使用canal-server模块也可以，但是修改配置起来比较麻烦。

此外，在整个过程还是遇到了一些问题的，以下介绍几个踩坑点：

canal监听时，有些库名和表名是空的，导致在动态topic情况下，kafka提示无效的topic名称，我们在配置中将空库名和表名的消息过滤掉就好，将默认的.*\\..*改为.+\\..+
我的kafka是在本地主机的，需要增加kafka配置advertised.listeners=PLAINTEXT://host.docker.internal:9092 ，容器中的应用才能正常访问kafka服务端
刚开始在启动canal-server时，总是连接admin服务失败，页面上所有接口也无响应，但是docker显示admin容器还在运行，进入canal-admin容器后查看日志无报错，但是后台的java进程已经没有了，困扰了挺久，后来发现我的docker内存配置只有2G，推测是内存不足停掉了，于是将docker内存配置改为8G，问题解决

本方案仅限于本地学习与测试，生产环境应使用HA模式部署，详见：https://github.com/alibaba/canal/wiki/AdminGuide#ha模式配置

附录(GitHub经常无法下载文件，提供一些用到的脚本)

GitHub地址：https://github.com/alibaba/canal

run_admin.sh

#!/bin/bash

function usage() {
    echo "Usage:"
    echo "  run_admin.sh [CONFIG]"
    echo "example :"
    echo "  run_admin.sh -e server.port=8089 \\"
    echo "         -e canal.adminUser=admin \\"
    echo "         -e canal.adminPasswd=admin"
    exit
}

function check_port() {
    local port=$1
    local TL=$(which telnet)
    if [ -f $TL ]; then
        data=`echo quit | telnet 127.0.0.1 $port| grep -ic connected`
        echo $data
        return
    fi

    local NC=$(which nc)
    if [ -f $NC ]; then
        data=`nc -z -w 1 127.0.0.1 $port | grep -ic succeeded`
        echo $data
        return
    fi
    echo "0"
    return
}

function getMyIp() {
    case "`uname`" in
        Darwin)
         myip=`echo "show State:/Network/Global/IPv4" | scutil | grep PrimaryInterface | awk '{print $3}' | xargs ifconfig | grep inet | grep -v inet6 | awk '{print $2}'`
         ;;
        *)
         myip=`ip route get 1 | awk '{print $NF;exit}'`
         ;;
  esac
  echo $myip
}

CONFIG=${@:1}
#VOLUMNS="-v $DATA:/home/admin/canal-admin/logs"
PORTLIST="8089"
PORTS=""
for PORT in $PORTLIST ; do
    #exist=`check_port $PORT`
    exist="0"
    if [ "$exist" == "0" ]; then
        PORTS="$PORTS -p $PORT:$PORT"
    else
        echo "port $PORT is used , pls check"
        exit 1
    fi
done

NET_MODE=""
case "`uname`" in
    Darwin)
        bin_abs_path=`cd $(dirname $0); pwd`
        ;;
    Linux)
        bin_abs_path=$(readlink -f $(dirname $0))
        NET_MODE="--net=host"
        PORTS=""
        ;;
    *)
        NET_MODE="--net=host"
        PORTS=""
        bin_abs_path=`cd $(dirname $0); pwd`
        ;;
esac
BASE=${bin_abs_path}
DATA="$BASE/data"
mkdir -p $DATA

if [ $# -eq 0 ]; then
    usage
elif [ "$1" == "-h" ] ; then
    usage
elif [ "$1" == "help" ] ; then
    usage
fi

MEMORY="-m 1024m"
LOCALHOST=`getMyIp`
cmd="docker run -d -it -h $LOCALHOST $CONFIG --name=canal-admin $VOLUMNS $NET_MODE $PORTS $MEMORY canal/canal-admin"
echo $cmd
eval $cmd

run.sh

#!/bin/bash

function usage() {
    echo "Usage:"
    echo "  run.sh [CONFIG]"
    echo "example 1 :"
    echo "  run.sh -e canal.instance.master.address=127.0.0.1:3306 \\"
    echo "         -e canal.instance.dbUsername=canal \\"
    echo "         -e canal.instance.dbPassword=canal \\"
    echo "         -e canal.instance.connectionCharset=UTF-8 \\"
    echo "         -e canal.instance.tsdb.enable=true \\"
    echo "         -e canal.instance.gtidon=false \\"
    echo "         -e canal.instance.filter.regex=.*\\\\\\..* "
    echo "example 2 :"
    echo "  run.sh -e canal.admin.manager=127.0.0.1:8089 \\"
    echo "         -e canal.admin.port=11110 \\"
    echo "         -e canal.admin.user=admin \\"
    echo "         -e canal.admin.passwd=4ACFE3202A5FF5CF467898FC58AAB1D615029441"
    exit
}

function check_port() {
    local port=$1
    local TL=$(which telnet)
    if [ -f $TL ]; then
        data=`echo quit | telnet 127.0.0.1 $port| grep -ic connected`
        echo $data
        return
    fi

    local NC=$(which nc)
    if [ -f $NC ]; then
        data=`nc -z -w 1 127.0.0.1 $port | grep -ic succeeded`
        echo $data
        return
    fi
    echo "0"
    return
}

function getMyIp() {
    case "`uname`" in
        Darwin)
         myip=`echo "show State:/Network/Global/IPv4" | scutil | grep PrimaryInterface | awk '{print $3}' | xargs ifconfig | grep inet | grep -v inet6 | awk '{print $2}'`
         ;;
        *)
         myip=`ip route get 1 | awk '{print $NF;exit}'`
         ;;
  esac
  echo $myip
}

CONFIG=${@:1}
#VOLUMNS="-v $DATA:/home/admin/canal-server/logs"
PORTLIST="11110 11111 11112 9100"
PORTS=""
for PORT in $PORTLIST ; do
    #exist=`check_port $PORT`
    exist="0"
    if [ "$exist" == "0" ]; then
        PORTS="$PORTS -p $PORT:$PORT"
    else
        echo "port $PORT is used , pls check"
        exit 1
    fi
done

NET_MODE=""
case "`uname`" in
    Darwin)
        bin_abs_path=`cd $(dirname $0); pwd`
        ;;
    Linux)
        bin_abs_path=$(readlink -f $(dirname $0))
        NET_MODE="--net=host"
        PORTS=""
        ;;
    *)
        bin_abs_path=`cd $(dirname $0); pwd`
        NET_MODE="--net=host"
        PORTS=""
        ;;
esac
BASE=${bin_abs_path}
DATA="$BASE/data"
mkdir -p $DATA

if [ $# -eq 0 ]; then
    usage
elif [ "$1" == "-h" ] ; then
    usage
elif [ "$1" == "help" ] ; then
    usage
fi

MEMORY="-m 4096m"
LOCALHOST=`getMyIp`
cmd="docker run -d -it -h $LOCALHOST $CONFIG --name=canal-server $VOLUMNS $NET_MODE $PORTS $MEMORY canal/canal-server"
echo $cmd
eval $cmd

server配置文件模板(canal.properties)

#################################################
######### 		common argument		#############
#################################################
# tcp bind ip
canal.ip =
# register ip to zookeeper
canal.register.ip =
canal.port = 11111
canal.metrics.pull.port = 11112
# canal instance user/passwd
# canal.user = canal
# canal.passwd = E3619321C1A937C46A0D8BD1DAC39F93B27D4458

# canal admin config
#canal.admin.manager = 127.0.0.1:8089
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd = 4ACFE3202A5FF5CF467898FC58AAB1D615029441

canal.zkServers =
# flush data to zk
canal.zookeeper.flush.period = 1000
canal.withoutNetty = false
# tcp, kafka, rocketMQ, rabbitMQ
canal.serverMode = tcp
# flush meta cursor/parse position to file
canal.file.data.dir = ${canal.conf.dir}
canal.file.flush.period = 1000
## memory store RingBuffer size, should be Math.pow(2,n)
canal.instance.memory.buffer.size = 16384
## memory store RingBuffer used memory unit size , default 1kb
canal.instance.memory.buffer.memunit = 1024
## meory store gets mode used MEMSIZE or ITEMSIZE
canal.instance.memory.batch.mode = MEMSIZE
canal.instance.memory.rawEntry = true

## detecing config
canal.instance.detecting.enable = false
#canal.instance.detecting.sql = insert into retl.xdual values(1,now()) on duplicate key update x=now()
canal.instance.detecting.sql = select 1
canal.instance.detecting.interval.time = 3
canal.instance.detecting.retry.threshold = 3
canal.instance.detecting.heartbeatHaEnable = false

# support maximum transaction size, more than the size of the transaction will be cut into multiple transactions delivery
canal.instance.transaction.size =  1024
# mysql fallback connected to new master should fallback times
canal.instance.fallbackIntervalInSeconds = 60

# network config
canal.instance.network.receiveBufferSize = 16384
canal.instance.network.sendBufferSize = 16384
canal.instance.network.soTimeout = 30

# binlog filter config
canal.instance.filter.druid.ddl = true
canal.instance.filter.query.dcl = false
canal.instance.filter.query.dml = false
canal.instance.filter.query.ddl = false
canal.instance.filter.table.error = false
canal.instance.filter.rows = false
canal.instance.filter.transaction.entry = false

# binlog format/image check
canal.instance.binlog.format = ROW,STATEMENT,MIXED
canal.instance.binlog.image = FULL,MINIMAL,NOBLOB

# binlog ddl isolation
canal.instance.get.ddl.isolation = false

# parallel parser config
canal.instance.parser.parallel = true
## concurrent thread number, default 60% available processors, suggest not to exceed Runtime.getRuntime().availableProcessors()
#canal.instance.parser.parallelThreadSize = 16
## disruptor ringbuffer size, must be power of 2
canal.instance.parser.parallelBufferSize = 256

# table meta tsdb info
canal.instance.tsdb.enable = true
canal.instance.tsdb.dir = ${canal.file.data.dir:../conf}/${canal.instance.destination:}
canal.instance.tsdb.url = jdbc:h2:${canal.instance.tsdb.dir}/h2;CACHE_SIZE=1000;MODE=MYSQL;
canal.instance.tsdb.dbUsername = canal
canal.instance.tsdb.dbPassword = canal
# dump snapshot interval, default 24 hour
canal.instance.tsdb.snapshot.interval = 24
# purge snapshot expire , default 360 hour(15 days)
canal.instance.tsdb.snapshot.expire = 360

#################################################
######### 		destinations		#############
#################################################
canal.destinations =
# conf root dir
canal.conf.dir = ../conf
# auto scan instance dir add/remove and start/stop instance
canal.auto.scan = true
canal.auto.scan.interval = 5

canal.instance.tsdb.spring.xml = classpath:spring/tsdb/h2-tsdb.xml
#canal.instance.tsdb.spring.xml = classpath:spring/tsdb/mysql-tsdb.xml

canal.instance.global.mode = manager
canal.instance.global.lazy = false
canal.instance.global.manager.address = ${canal.admin.manager}
#canal.instance.global.spring.xml = classpath:spring/memory-instance.xml
canal.instance.global.spring.xml = classpath:spring/file-instance.xml
#canal.instance.global.spring.xml = classpath:spring/default-instance.xml

##################################################
######### 	      MQ Properties      #############
##################################################
# aliyun ak/sk , support rds/mq
canal.aliyun.accessKey =
canal.aliyun.secretKey =
canal.aliyun.uid=

canal.mq.flatMessage = true
canal.mq.canalBatchSize = 50
canal.mq.canalGetTimeout = 100
# Set this value to "cloud", if you want open message trace feature in aliyun.
canal.mq.accessChannel = local

canal.mq.database.hash = true
canal.mq.send.thread.size = 30
canal.mq.build.thread.size = 8

##################################################
######### 		     Kafka 		     #############
##################################################
kafka.bootstrap.servers = 127.0.0.1:6667
kafka.acks = all
kafka.compression.type = none
kafka.batch.size = 16384
kafka.linger.ms = 1
kafka.max.request.size = 1048576
kafka.buffer.memory = 33554432
kafka.max.in.flight.requests.per.connection = 1
kafka.retries = 0

kafka.kerberos.enable = false
kafka.kerberos.krb5.file = "../conf/kerberos/krb5.conf"
kafka.kerberos.jaas.file = "../conf/kerberos/jaas.conf"

##################################################
######### 		    RocketMQ	     #############
##################################################
rocketmq.producer.group = test
rocketmq.enable.message.trace = false
rocketmq.customized.trace.topic =
rocketmq.namespace =
rocketmq.namesrv.addr = 127.0.0.1:9876
rocketmq.retry.times.when.send.failed = 0
rocketmq.vip.channel.enabled = false

##################################################
######### 		    RabbitMQ	     #############
##################################################
rabbitmq.host =
rabbitmq.virtual.host =
rabbitmq.exchange =
rabbitmq.username =
rabbitmq.password =

instance模板配置(instance.propertios)

#################################################
## mysql serverId , v1.0.26+ will autoGen
# canal.instance.mysql.slaveId=0

# enable gtid use true/false
canal.instance.gtidon=false

# position info
canal.instance.master.address=127.0.0.1:3306
canal.instance.master.journal.name=
canal.instance.master.position=
canal.instance.master.timestamp=
canal.instance.master.gtid=

# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=

# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal

#canal.instance.standby.address =
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=

# username/password
canal.instance.dbUsername=canal
canal.instance.dbPassword=canal
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==

# table regex
canal.instance.filter.regex=.*\\..*
# table black regex
canal.instance.filter.black.regex=
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch

# mq config
canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#################################################

docker 后端开发 MySQL canal

本博客所有文章除特别声明外，均采用 CC BY-SA 4.0 协议，转载请注明出处！

数据结构与算法的实际应用——根据表关系构建SQL语句上一篇

jar包执行时访问资源文件造成的FileSystemNotFoundException问题下一篇
